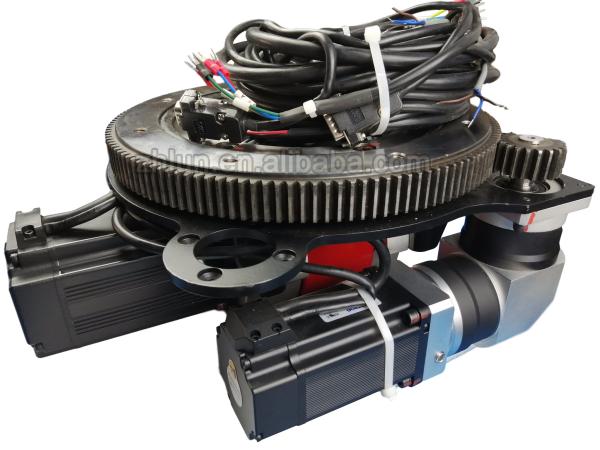

    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    Ask Lasest Price
    Brand Name : ZHLUN
    Model Number : ZL-160
    Price : $1900-3000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    AGV ZL-160 Steering Drive Wheel Double Support Low Strong Load Capacity And Strong Traction Built-In Planetary Reducer

    Product Overview
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    PU wheel with planetary reduction transmission structure
    This structure is one of the most important parts of the drive wheel.
    It can reduce the speed of the motor and increase the output torque at the same time.
    Planetary Gearbox: 1 to 3 levels
    Speed ratio: 7-120 I
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    Traction motor
    Wheel model up to 7500W
    It powers the drive steering wheel.
    Motor type: Servo/Brushless/Brushed
    Rate Speed (customizable): 3000r/min
    Rate Voltage: DC24-48V / AC 220V
    Motor and driver are sold as a bundle
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    Steering motor with planetary gearbox

    Provides power and torque to the steering function of the drive wheels.
    Motor type: Servo/Brushless/Brushed
    Rate Speed (customizable): 3000r/min
    Rate Voltage: DC24-48V / AC 220V
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    Gear Bearing
    Necessary parts for steering wheel to achieve steering, Integrate carrying and steering.
    ODM and OEM accepted
    Material: Steel
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    Brake
    Stop or reduce the speed of the running steering wheel.
    If the drive wheel needs to climb a slope, it must need a brake.(Optional)
    Standard steering drive wheels are available with suitable brakes.
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    Metal support structure
    Link various important parts of the steering wheel, while supporting and improving the bearing capacity of the steering wheel
    ODM and OEM accepted
    Material: Steel
    Product Specification
    Technical Parameter
    Model
    ZL-160
    Gearbox
    Level 1 to 3 planetary
    Speed ratio
    I
    7-120
    Wheel diameter
    mm
    125
    Fastest speed
    m/min
    20-200
    Max. Load
    KG
    800
    Temperature
    -10 to +55
    Weight
    KG
    30
    Traction motor technical parameter
    Motor type
    Servo / Brushless
    Rated power
    W
    1000-7500
    Rated voltage
    V
    DC24/48V, AC220V
    Rated speed
    rpm/min
    3000 customizable
    Rated torque
    N.m
    .32-3.18
    Steering motor technical parameter
    Motor type
    Servo / Brushless
    Rated power
    W
    1000-3000
    Rated voltage
    V
    DC24/48V, AC220V
    Rated speed
    rpm/min
    3000 customizable
    Rated speed
    N.m
    0.16-0.64
    Steering reducer speed ratio
    I
    35-120
    Mechanical limit range
    ±120°
    Angle limit
    Proximity switch NPN / PNP
    Angle sensor
    Potentiometer / Incremental / Absolute value (Optional)
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    Product Application
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    AGV Loading Drive Platform Truck
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    Latent type AGV
    Standard height AGV
    Large Platform Truck
    Our steering wheel matches AGVs of different heights
    Match any AGV system and transport equipment
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-130
    Installation height: 130mm
    Load: 500 kg
    ZL-230
    Installation height: 230mm
    Load: 1000 kg
    ZL-380
    Installation height: 380mm
    Load: 3000 kg
    Drive Wheel Control Kit
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer

    Steering wheel drive remote control kit (brushless motor as an example)
    One-stop solution for steering wheel drive, just connect a suitable battery and drive easily by remote control. Save time and effort without electrical engineering installation.
    It is feasible to add lifting equipment on the basis of the steering wheel too.
    Successful Project
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    Other types
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-B26
    Shock-absorbing Steering Wheel
    Suitable for 1 drive wheel and 4 caster structure, with shock absorption function, the chassis keeps driving balance at all times.
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-325
    Differential Steering Drive Wheel
    Has a low height and has a high load of 3T. Suitable for low profile and large load drive platforms
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
    ZL-460
    Vertical Steering Drive Wheel
    Motor vertical design, suitable for high and low disc design, equipped with rubber wheels and 1T load
    ZL-160 Double Support AGV Drive Wheel Built In planetary gear reducer
