High Power 48V Motor Industrial Vehicle Rubber Tire Drive Wheel For
Platform Handling
This drive wheel has two motors, one is use to drive the wheel,and
another is using to steering, which has much higher accuracy.
Besides, it could install the absolute encoder at left position.
ZL-762 is made of high tensile steel with harden raceway to provide
long lasting service life and extreme high load capacity while
maintaining low profile and overall height. It is suitable for
application like AGV and robotic industry products.
Specification
Item | Motor Data |
Model | ZL-762 |
Motor Type | Servo / Brushless |
Traction Data |
Rated Power(W) | 1-7.5 KW Optional |
Rated Voltage(V) | DC48 V,AC220V |
Rated Speed(rpm) | 3000 r/min |
Rated Torque(N.m) | 3.18-36 Nm |
Gear Ratio(i) | 34.14i |
Wheel Diameter(mm) | 125 mm |
Encoder | Optional |
Steering Data |
Power S2-60 min | 1-3 KW Optional |
Rated Voltage | DC48 V,AC220V |
Rate Speed | 3000 r/min |
Rate Torque | 3.18-10 Nm |
Total Reduction Ratio | customizable |
Encoder | Optional |
Introducing ZHLUN drive wheel, featuring a high torque-density
brushless DC motor with integrated planetary gearbox and wheel
assembly.
ZHLUN AGV drive wheel integrates an 8-pole Brushless DC motor with
a heavy-duty, single or two-stage planetary gearbox mounted inside
the hub of an aluminum wheel with polyurethane tread. Designed for
mobile platform traction systems with optional encoder feedback to
support positioning capability and electromagnetic brake to hold
position when power is removed. The drive wheel combines optimum
performance with high-efficiency, quiet operation and long life.
ZHLUN motor drive wheel series wheel drives feature an integrated
design that provides increased performance and reliability at an
affordable price compared to traditional motor / gearbox / wheel
combinations. As with all ZHLUN products, the ZL series wheel
drives are customizable to meet specific application requirements.
Features
• Smooth, efficient motion
• Compact, lightweight, durable and highly reliable integrated
design
• Powerful starting torque:
• Peak torque up to 35 Nm
• Continuous torque up to 20 Nm
• Configurable or completely customizable designs
• Motor, gearbox, wheel, brake, encoder, cabling
• Typical applications:
• Automated Guided Vehicles
• Autonomous Mobile Robots
Today, ZHLUN can quickly design and produce engines and special
parts request from customers.

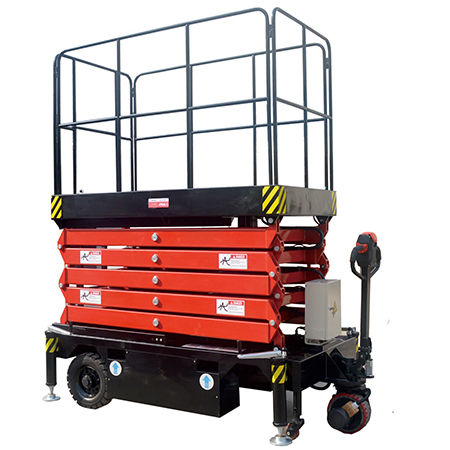

ZHLUN's product are used in a myriad of application, including but
not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines,
Agricultural Machines, Hydraulic Applications, Floor Scrubbers,
Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify
the quality and the duration will work perfectly before sending
production parts to customers. Due diligence is paramount to the
satisfaction of our customers.
