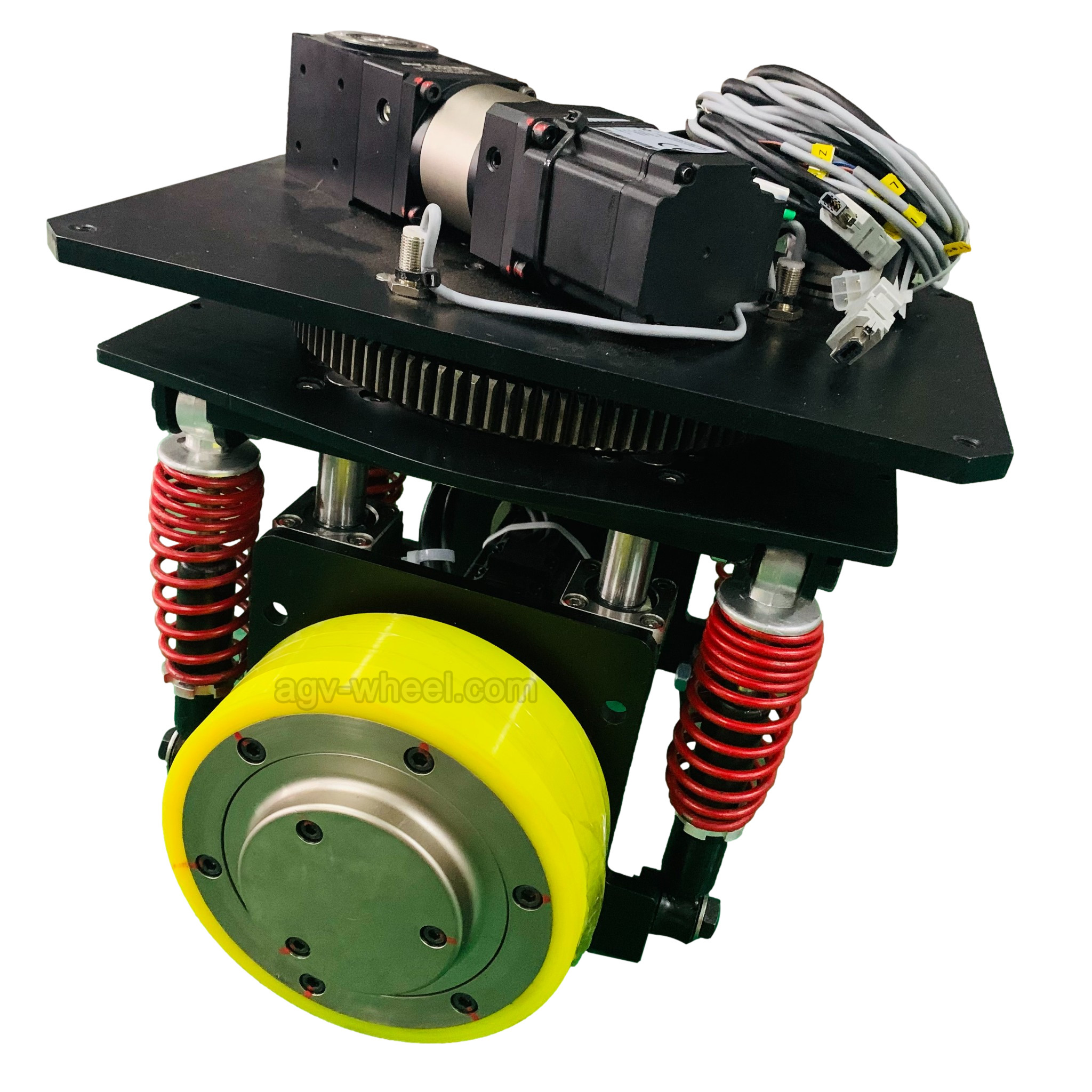

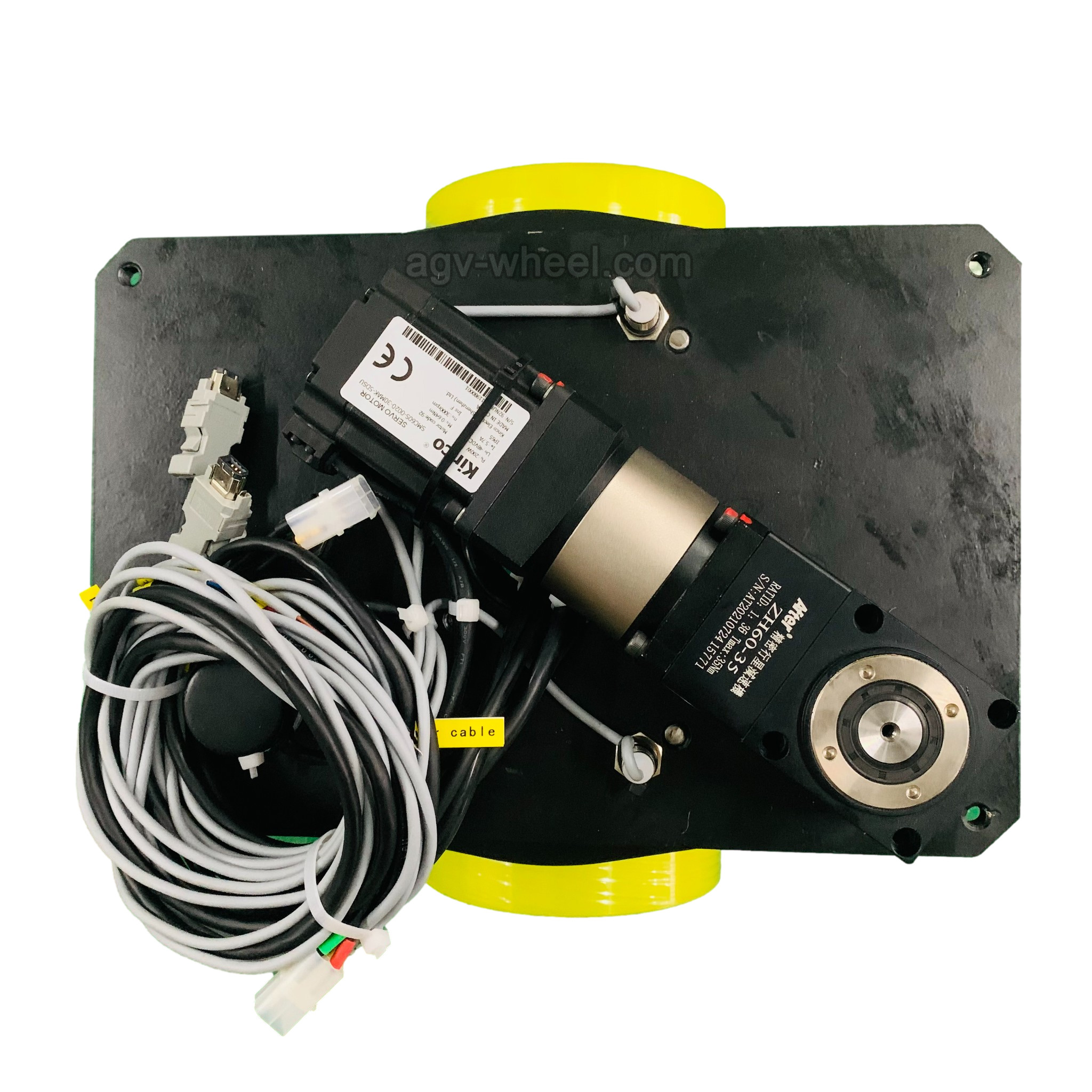

    Shock absorption Differential Wheel 90W AGV Servo Motor Steering Wheel 40m/min

    Ask Lasest Price
    Brand Name : ZHLUN
    Supply Ability : 1000 Pieces per Month
    Price : Negotiable
    Model Number : ZL-C240
    Payment Terms : L/C, T/T
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Shock absorption Differential Wheel 90W AGV Servo Motor Steering Wheel 40m/min

    Shock-Absorbing Differential Wheel Servo Motor Steering System
    Specification
    C240 Differential Wheel Parameter Table
    ItemNameValue
    1Installation height240 mm
    2Wheel diameter180*180
    3Speed ratio24i
    4Speed40 m/min
    5Maximum load400 KG
    6Traction motor400 W
    7Steering motor90 W
    8Steering ratio1:20
    9Motor VoltageDC48
    10Angle sensorOptional
    11Walking encoderOptional
    12Steering limit sensorNPN/PNP
    14Weight25
    Description
    The differential wheel is equipped with a steering motor, which means that the driving wheel itself can rotate, also the steering is realized by the speed difference between the inner and outer driving wheels,too.
    The AGV using this drive mode has high flexibility and can also achieve 360-degree rotation
    The differential wheel does not require high motor and control accuracy, so the cost is relatively low and cost-effective.
    Double wheels design ensure the casters turning more flexible.
    The AGV wheels use High quality TPU wheel tread + aluminum alloy core plus top quality bearing ensure whole wheel have long use-life,environment friendly,low drag force. The two step shock absorbing system enable the AGV casters cushion system start work from small pressure. To ensure the AGV wheels with good performance in vary conditions.
    The damping system combine with two suspension steps.
    No.1 spring damping portion.
    No.2 PU block portion.
    Shock absorption Differential Wheel 90W AGV Servo Motor Steering Wheel 40m/min
    Shock absorption Differential Wheel 90W AGV Servo Motor Steering Wheel 40m/min
    Shock absorption Differential Wheel 90W AGV Servo Motor Steering Wheel 40m/min
    Shock absorption Differential Wheel 90W AGV Servo Motor Steering Wheel 40m/min
