    Small IP67 High Resistance Agv Lidar Navigation Scanning Sensor

    Ask Lasest Price
    Model Number : ZL-CNS-LSO5i
    Brand Name : ZHLUN
    Supply Ability : 1000 Pieces per Month
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Small IP67 High Resistance Agv Lidar Navigation Scanning Sensor


    Small Sensor IP67 High Resistance AGV Lidar Scanning Sensor For AGV


    Specification


    ZL-CNS-LSO5i Technical Parameter
    Working voltageDC8-32V
    Power2W
    Material

    Base: Aluminum die casting

    Window: Polycarbonate

    Weight173 g
    size (L*W*H) mm50*50*76.3
    RequirementsIndoor
    Light sourceLaser, wavelength 905nm
    Light source level1(IEC 60825-1:2014,EN 60825-1:2014)
    Detection angle270
    Angle resolution0.5
    Scanning area

    2 meters at 10% reflectivity

    5 meters at 100% reflectivity

    Scan error

    (farthest distance)

    40mm
    Recognizable object shapeArbitrary shape, resolution is calculated according to sensing distance
    Number of areas that can be switched64
    Protection levelIP65
    Working environment-10℃~+50℃
    Vibration resistance10-55Hz, 0.7mm double amplitude for each X, Y, Z is 2hrs
    Impact resistance196mJ/m2, 10 times in each of X, Y, Z
    Configure portMicro USB 2.0
    RS-232 port/
    RS-485 port/
    CAN communication port/
    Switch output port4
    CNS-LS05i switches obstacle avoidance channels through 6 switch signal outputs

    Description


    ZL-CNS-LSO5i series Lidar products have a 10m, 270° measurement range, DC12V/24V input, 25ms scan time, IP65 protection, non-contact measurement. It can be used for high-speed motion robot obstacle avoidance and position recognition; high-precision, high-resolution, wide-field design provides a good environment recognition capability for autonomous navigation robots; compact design saves installation space, low weight and low power consumption.

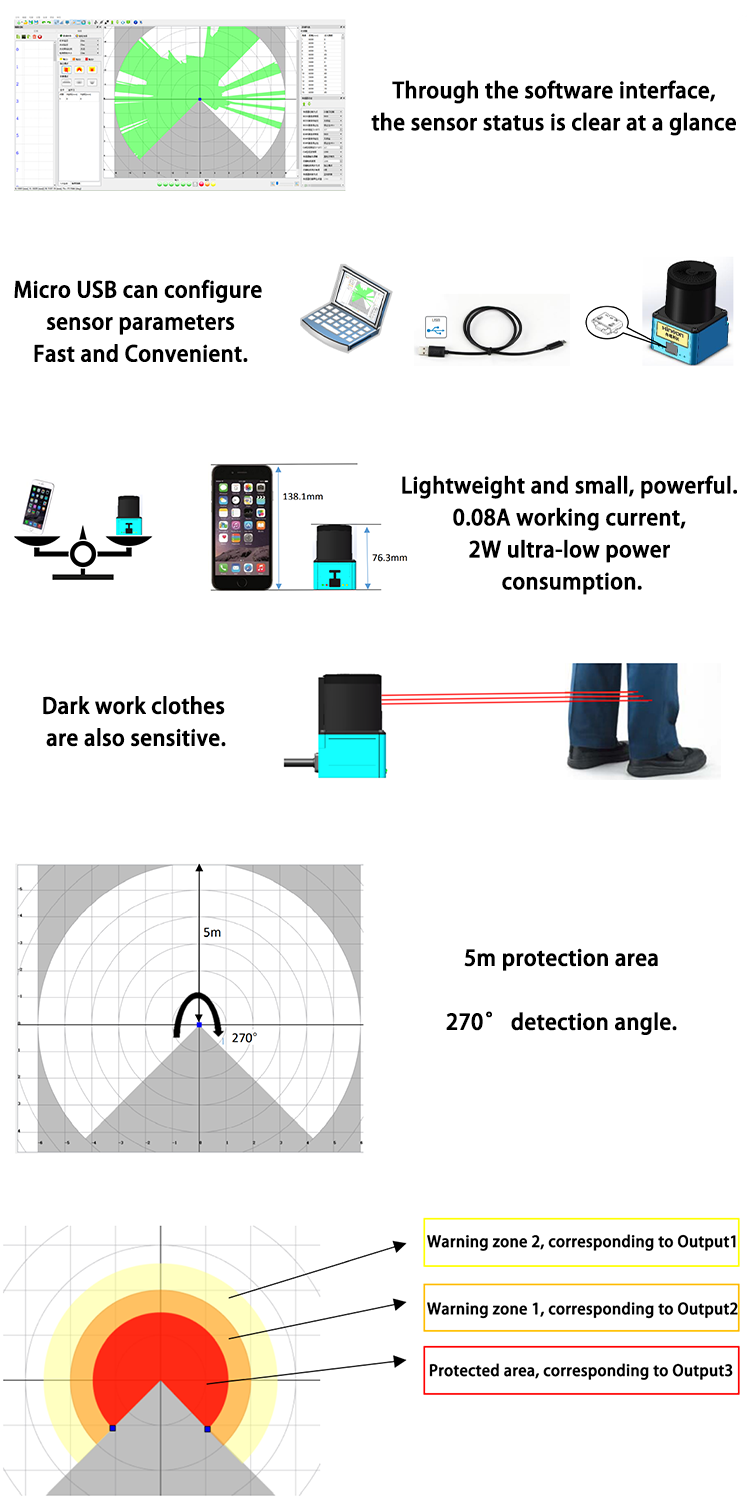

    Featuring small size, high flexibility, good precision and reliability and high cost performance, so it is the ideal choice for the obstacle avoidance and navigation of mobile robot. The LS system is composed of one laser radar, one distribution line and configuration software. Users can use the configuration cable to connect the lidar with the computer, and configure the protection zone and other related parameters through the configuration software.


    Function


    64 groups of regional settings.

    64 sets of settings can be made for the combination of 1 protection zone and 2 warning zones, which can cope with various complex usage requirements, and is more suitable for complex AGV operation scenarios to trigger sound and light alarms, speed control, emergency stop and other purposes.
