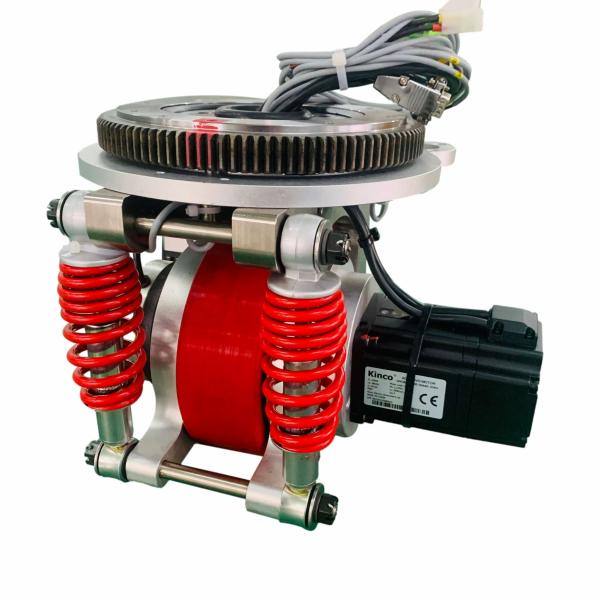

750w Shock-Absorbing Precision Gears Bearing AGV Steerable Traction Wheels Brushless Motor Wheel

The steering wheel is a mechanical structure that integrates the drive motor, steering motor, reducer, etc. The steering wheel has high integration and strong adaptability. With the same servo control system (controller, servo driver), it can quickly install AGV, move robot.

The system adopts the drive motor and steering motor with electromagnetic brake function, which can effectively prevent the platform from moving due to the power failure of the car body, which affects the disassembly and parking of the drum section on the car body platform, thereby improving the stability of the operation. and safety.

Therefore, steering wheel drive is the development direction of AGV applications. Compared with the traditional AGV trolley differential speed control method, the steering wheel has high integration, strong adaptability, higher precision and faster response when used with the servo system.

Specification

ZHLUN drive wheel, featuring a high torque-density Brushless / Servo DC motor with integrated planetary gearbox and wheel assembly.

ZHLUN AGV drive wheel integrates an 8-pole Brushless DC motor with a heavy-duty, single or two-stage planetary gearbox mounted inside the hub of an aluminum wheel with polyurethane tread. Designed for mobile platform traction systems with optional encoder feedback to support positioning capability and electromagnetic brake to hold position when power is removed. The drive wheel combines optimum performance with high-efficiency, quiet operation and long life.

Features:

• Smooth, efficient motion

• Compact, lightweight, durable and highly reliable integrated design

• Powerful starting torque:

• Peak torque up to 35 Nm

• Continuous torque up to 20 Nm

• Configurable or completely customizable designs

• Motor, gearbox, wheel, brake, encoder, cabling

• Typical applications:

• Automated Guided Vehicles

• Autonomous Mobile Robots

Guangzhou Wisdom Wheel Science Technology Ltd. relies on technological innovation for development, and continues to provide users with satisfactory high-tech products. According to application needs, it has successfully developed a series of AGV steering wheels with different installation heights such as 400, 260, 230, 200, 170, 160, and 130. drive assembly, the load capacity of a single steering wheel ranges from 500kg to 10 tons, the traction force ranges from 200Kg to 10 tons, and the multi-steering wheel combination has a heaviest traction force of 100 tons.

The KIVA power system has also been affirmed by a large number of users; At the same time, the company is also unique in the field of heavy-duty handling, heavy-duty unmanned handling flatbed trucks, omnidirectional forklifts, and special assembly AGVs in special industries. AGV products have been widely used in many fields such as automobiles, metallurgy, chemicals, electronics, pharmaceuticals, tobacco, and military industries.

In the process of development, the company continuously communicates and cooperates with many domestic scientific research institutions, designs and produces, It already has a pivotal position in the automated logistics industry, leading the development of AGV-driven.

Our aim is to create value for customers with first-class product quality and superb technical service!
