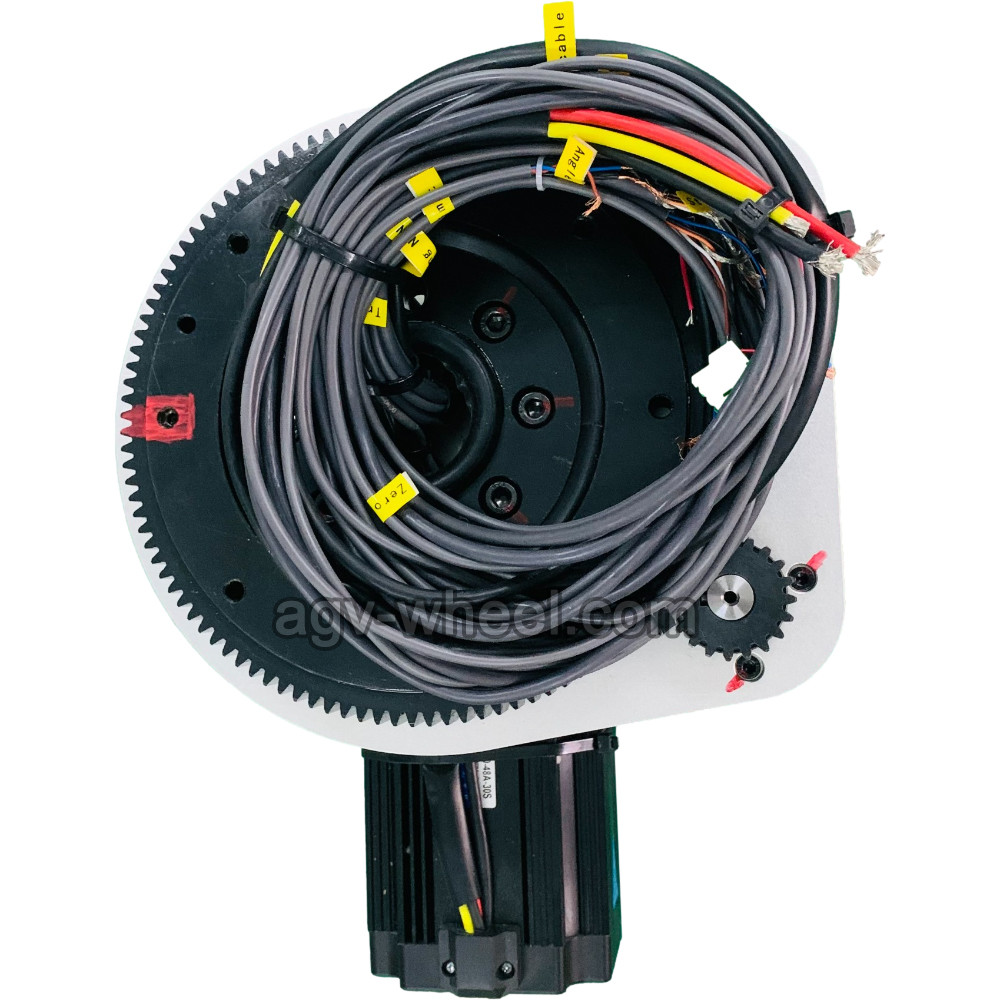

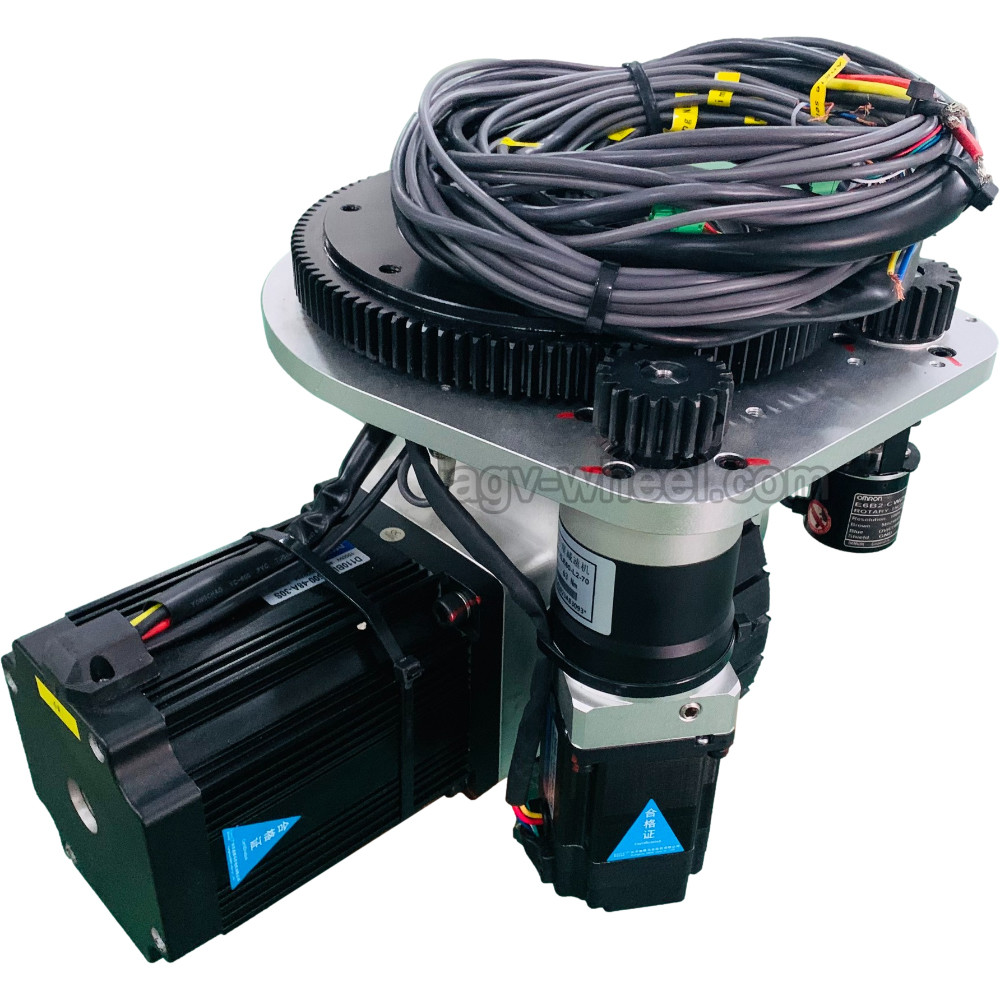

Agv Drive Unit Polyurethane Drive Wheel Vibrate Steering Wheel With
Increment Encoder For AGVs
Steering wheel, refers to the integration of drive motor, steering
motor, reducer and other integrated mechanical structure, compared
to the traditional AGV trolley differential control mode, rudder
wheel integration is high, strong adaptability, with Tongyi
controller and low-voltage ICL servo drive, can quickly deploy AGV,
mobile robots, etc.
Model | ZL-270 |
Motor Rated Power(kw) | 1.2 |
Battery Voltage(V) | 24 |
Motor Current(A) | 62 |
Motor Rated Speed(r/min) | 3000 |
Max. Turning Radius(r/min) | 100 |
Speed Ratio(i) | 1:32 |
Max. Turning Radius(mm) | 176 |
Max. Wheel Load(kg) | 1000 |
Wheel Diameter(mm) | 200 |
Brake Torque(N·m) | 8 |
Large diameter DC horizontal driving wheel is a multi-functional
driving device which integrates power, transmission mechanism and
walking mechanism. It has compact structure, large clearance from
the ground, and is easy to install. With better passing capacity,
it is widely used in the driving of various electric tractors,
self-propelled lifts, electric palletizers and other electric
vehicles. Vector electric braking makes braking more reliable and
safer. Use wear-resistant polyurethane or rubber wheel, grip
strength is stronger.
ZHLUN's product are used in a myriad of application, including but
not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines,
Agricultural Machines, Hydraulic Applications, Floor Scrubbers,
Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify
the quality and the duration will work perfectly before sending
production parts to customers. Due diligence is paramount to the
satisfaction of our customers.
