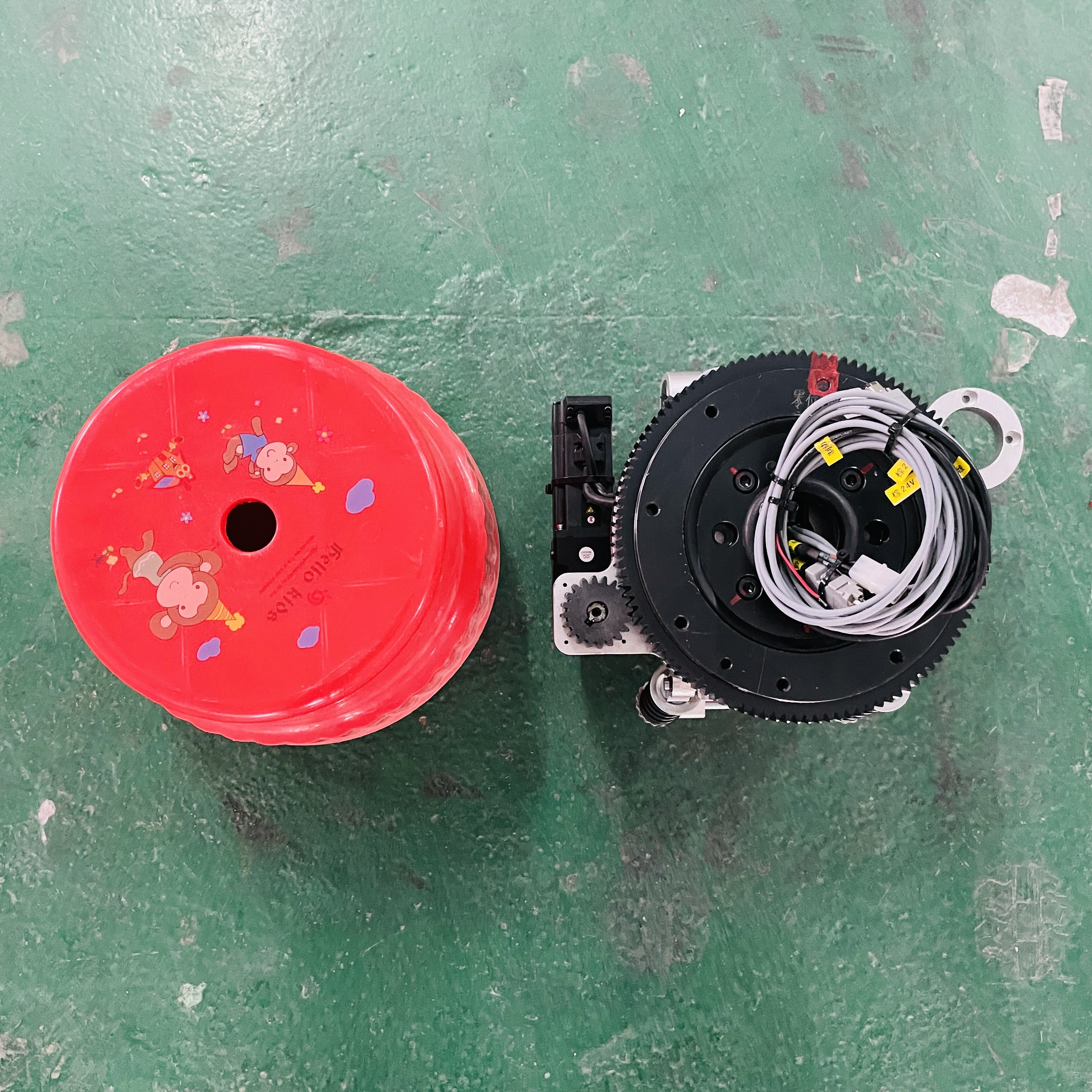

125mm AGV Robot Drive Wheels

AGV Drive Wheel 125mm Servo Motor 48V 750W With Shock Absorber For Steering Motor

Function

1. Maximum power density
High radial loads and constantly high acceleration and speed

2. Long service life
Drive system designed for efficiency with a long-lasting PUR wheel

3. Low level of maintenance
Components can be replaced individually thanks to the modular design

4. Intelligent drive system
Plug & Play function and a central parameter check using an optional sensor system

5. High level of integration
All functional elements housed in a compact space with minimal weight

6. Comprehensive communication
Comprehensive drive control system as an e-axle thanks to standard interfaces (e.g. RS485 / Canopen,etc.)

125mm AGV Robot Drive Wheels

Specification

ModelZL-B205
Gear boxLevel 2 Stage gear
Speed ratioI7-120
Wheel diametermm125
Speedm/min20-200
Maximun loadKG300
Temperature℃- 10 to + 55
WeightKG20
Traction motorServo / Brushless
Rate powerW100-750
Rate voltageVDC24-48V / AC220 above
Rate speedrpm3000 ( customizable )
Rate torqueN.m0.32-2.39
Steering motorServo / Brushless
Rate powerW100-200
Rate voltageVDC24-48V / AC220 above
Rate speedrpm3000 ( customizable )
Rate torqueN.m0.32-0.64
Reducer speed ratioI35 - 120
Ranger± 120°
Angle limitNPN / PNP
SensorOptional

Advantage

- The steering wheel series can carry 100KG-10000KG by single
wheel.
- Choose high-power drive motors and types according to customer
requirements.
- A variety of speed ratios can be selected, allowing small power
to make large loads.
- Low installation height, as low as 130mm

Features

Small size: adopts integrated design, small size and light weight;
Simple operation: integrated automatic centering function;
Strong adaptability: In response to the mobile requirements of the
machine, the core components are equipped with a shockproof system,
which effectively prevents damage to the core components of the
machine due to accidental impacts during the transportation and use
of the equipment;
Various installation forms: horizontal and vertical
Multiple choices: AC or DC power supply;
Drive and steering integrated drive wheel products
