| Model | ZL-252 |
Gear box | Level 2 Stage gear |
| Speed ratio | I | 7-120 |
| Wheel diameter | mm | 200 |
| Speed | m/min | 20-200 |
| Maximun load | KG | 1000 |
| Temperature | ℃ | - 10 to + 55 |
| Weight | KG | 34 |
| Traction motor | Servo / Brushless |
| Rate power | W | 200 - 2000 |
| Rate voltage | V | DC24-48V / AC220 above |
| Rate speed | rpm | 3000 ( customizable ) |
| Rate torque | N.m | 0.64 - 6.37 |
| Steering motor | Servo / Brushless |
| Rate power | W | 90 - 400 |
| Rate voltage | V | DC24-48V / AC220 above |
| Rate speed | rpm | 3000 ( customizable ) |
| Rate torque | N.m | 0.29 - 1.39 |
| Reducer speed ratio | I | 35 - 120 |
| Ranger | ± 120° |
| Angle limit | NPN / PNP |
| Sensor | Optional |
Description

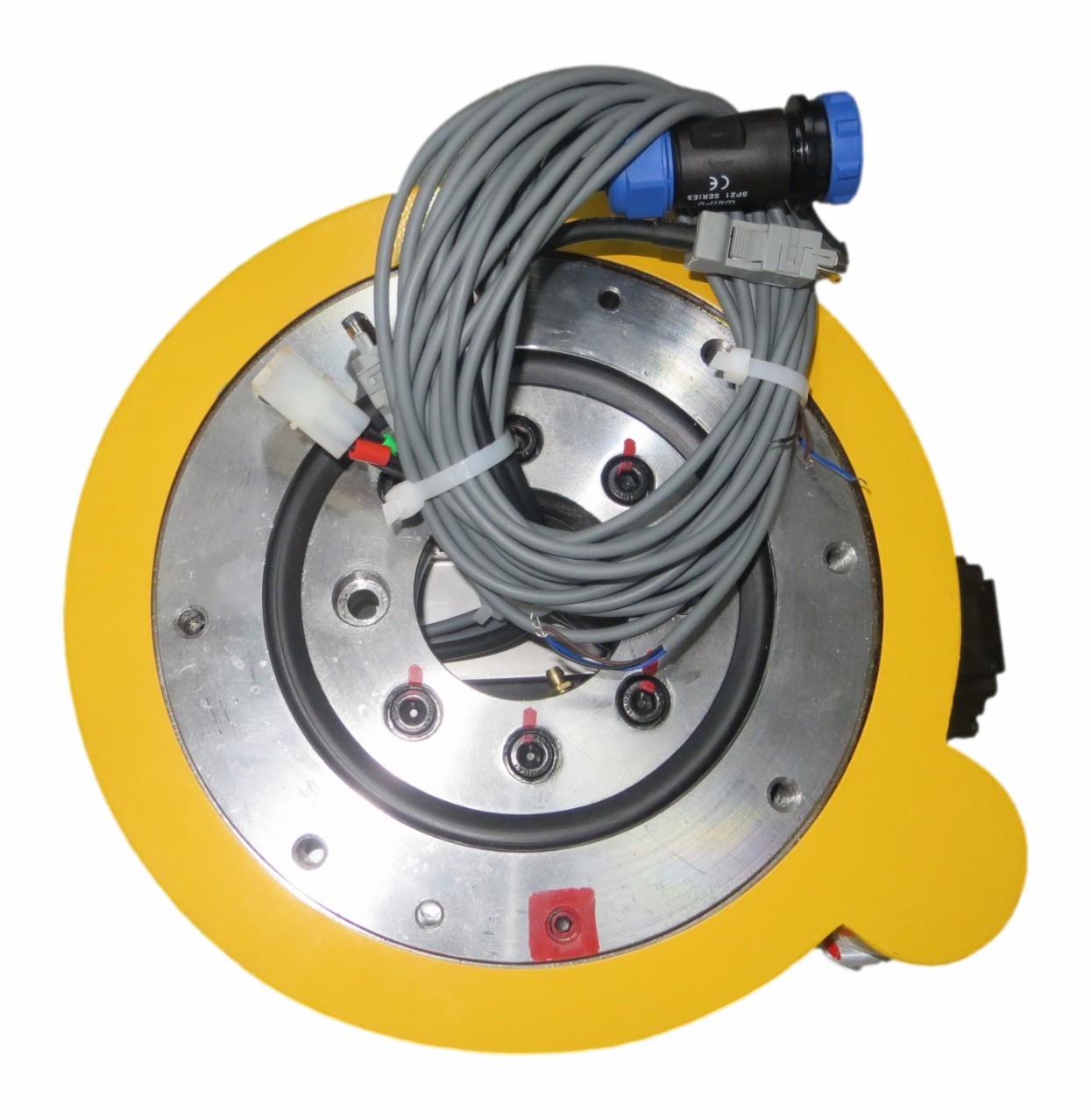

Steering Wheel is a core component of intelligent logistics
equipment such as AGV, electric forklifts and heavy mobile
platforms. It is used for steering and power driving of automatic
mobile platforms. The product has a compact structure, excellent
performance, high cost performance, and safety and reliability. Its
control , accuracy, overload capacity, efficiency and other
technical indicators are at the leading level, which can be widely
used in logistic and warehousing, docking assembly, port
transportation and other fields.
Dozens of steering wheels have been developed to be applicable to
different industrial fields.
Because of different customer needs and use environments, we also
provide customized drive wheels. (Such as installation height,
wheel surface material, gear, speed, encoder, etc.)
Advantage
- The steering wheel series can carry 100KG-10000KG by single
wheel.
- Choose high-power drive motors and types according to customer
requirements.
- A variety of speed ratios can be selected, allowing small power
to make large loads.
- Low installation height, as low as 130mm
