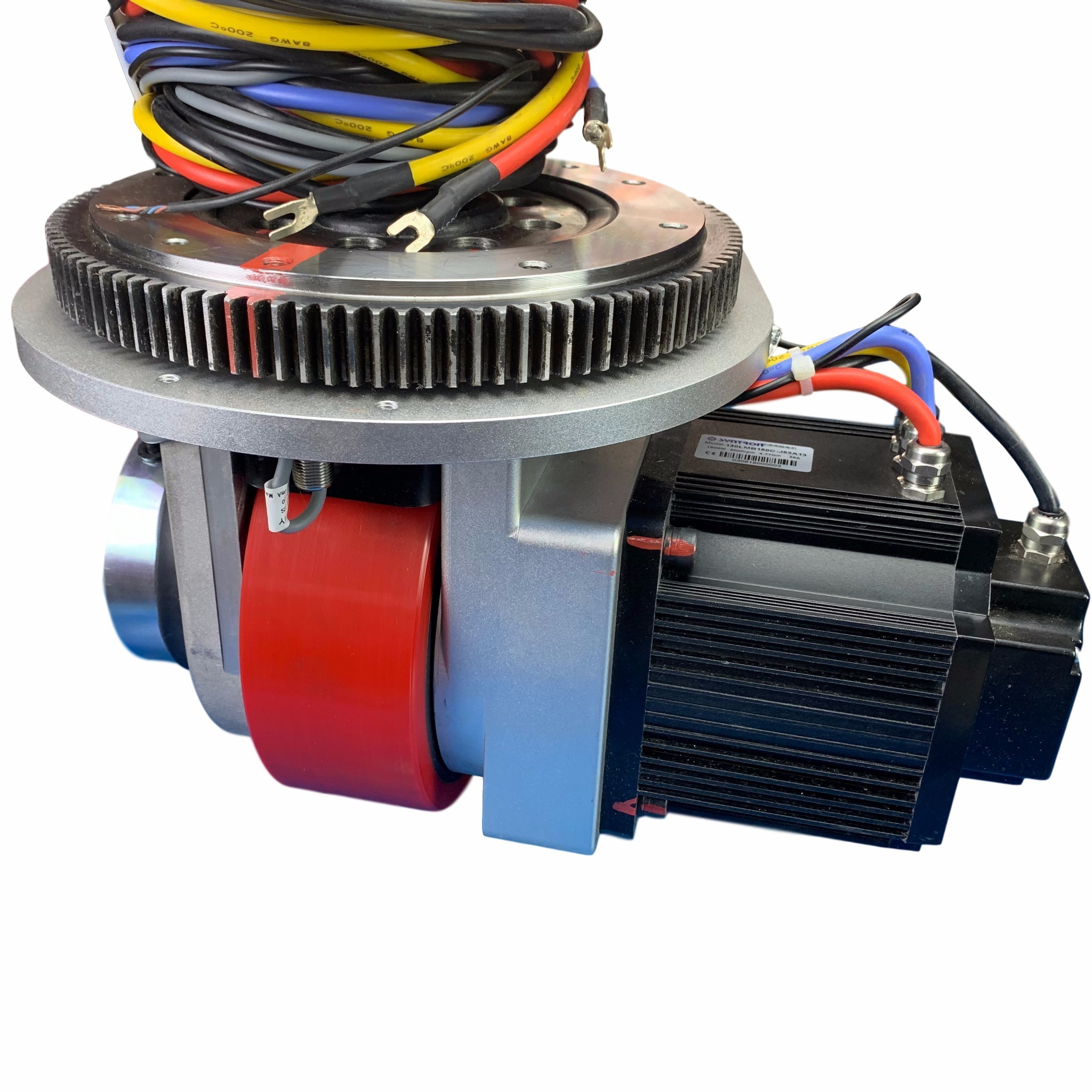

DC Driving Wheel Assembly AGV Drive Wheel Warehouse Stacker Part

Specification

Description

1. The driving wheels of the AGV trolley are coated with polyurethane, which can be customized according to the required load capacity of the AGV trolleys of various enterprises. Under high load, the polyurethane coated wheels have greater wear resistance to meet the needs of enterprises. Polyurethane-coated AGV drive wheels have various characteristics such as oil resistance, ozone resistance, aging resistance, and radiation resistance, and support special customization by enterprises.

2. AGVs have various accuracy requirements, so we provide a selection of various feedback options that can tailor the system to your specific needs. Brakes are available upon request. This system can be designed around your power source - whether it is 48V or 400V, we have options available.Encoders are also integrated into the design, with resolutions ranging from 100ppr to 1000ppr.

3. The ZHLUN Series drive wheel facilitates easy customization of an industrial AGV drive wheel system with a compact, modular system. This platform is ideal for customers that want a customized solution, without the higher costs that typically accompany customization. The motor comes in ratings of 400 W or 1500 W, with higher ratings available upon request.

Guangzhou Wisdom Wheel Science Technology Ltd. relies on technological innovation for development, and continues to provide users with satisfactory high-tech products. According to application needs, it has successfully developed a series of AGV steering wheels with different installation heights such as 400, 260, 230, 200, 170, 160, and 130. drive assembly, the load capacity of a single steering wheel ranges from 500kg to 10 tons, the traction force ranges from 200Kg to 10 tons, and the multi-steering wheel combination has a heaviest traction force of 100 tons.

The KIVA power system has also been affirmed by a large number of users; At the same time, the company is also unique in the field of heavy-duty handling, heavy-duty unmanned handling flatbed trucks, omnidirectional forklifts, and special assembly AGVs in special industries. AGV products have been widely used in many fields such as automobiles, metallurgy, chemicals, electronics, pharmaceuticals, tobacco, and military industries.

In the process of development, the company continuously communicates and cooperates with many domestic scientific research institutions, designs and produces, It already has a pivotal position in the automated logistics industry, leading the development of AGV-driven.

Our aim is to create value for customers with first-class product quality and superb technical service!
