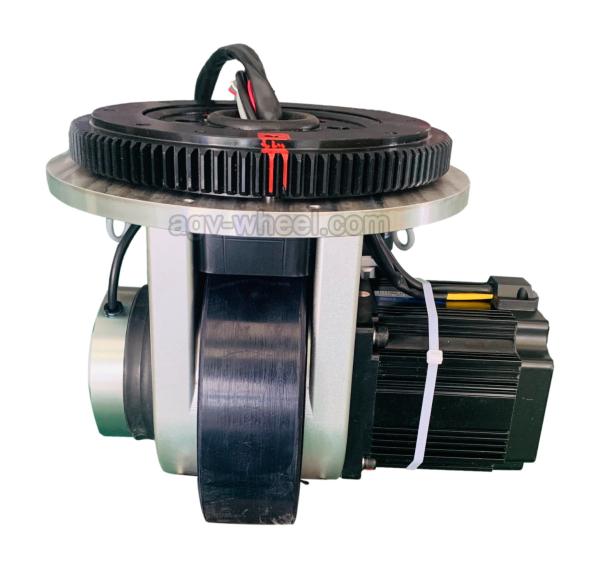

    750W Polyurethane AGV Drive Wheel 1 Ton Wheel Hub Drive Assembly

    Ask Lasest Price
    Brand Name : ZHLUN
    Model Number : ZL-270
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Pieces per Month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    750W Polyurethane AGV Drive Wheel 1 Ton Wheel Hub Drive Assembly


    750W Polyurethane AGV Drive Wheel 1 Ton Wheel Hub Drive Assembly


    Specification


    Item
    Motor Data
    Model
    ZL-270
    Traction Data
    Motor Type
    BLDC
    Power S2-60 min
    750W
    Rated Voltage
    48V
    Rated Current
    19.5A
    Rated Speed
    3000rpm
    Rated Torque
    2.4Nm
    Gear Ratio
    42I
    Brake Torque
    6Nm
    Steering Data
    Power S2-60 min
    200W
    Rated Voltage
    48V
    Rated Current
    5.21 A
    Rated Speed
    3000rpm
    Rated Torque
    0.64

    Description


    The driving wheels of the AGV trolley are coated with polyurethane, which can be customized according to the required load capacity of the AGV trolleys of various enterprises. Under high load, the polyurethane coated wheels have greater wear resistance to meet the needs of enterprises. Polyurethane-coated AGV drive wheels have various characteristics such as oil resistance, ozone resistance, aging resistance, and radiation resistance, and support special customization by enterprises.


    Zhlun has developed a highly integrated wheel drive that combines all functional elements, such as the wheel, a high-precision planetary gear, a powerful electric motor and a brake and electronics, into one all-inclusive solution. This modular and scalable system boasts high performance in a compact design and lets users make adaptations to the load capacity, torque, interfaces, sensor system and control profiles.


    Function


    1. Maximum power density
    High radial loads and constantly high acceleration and speed


    2. Long service life
    Drive system designed for efficiency with a long-lasting PUR wheel


    3. Low level of maintenance
    Components can be replaced individually thanks to the modular design


    4. Intelligent drive system
    Plug & Play function and a central parameter check using an optional sensor system


    5. High level of integration
    All functional elements housed in a compact space with minimal weight


    6. Comprehensive communication
    Comprehensive drive control system as an e-axle thanks to standard interfaces (e.g. RS485 / Canopen,etc.)
