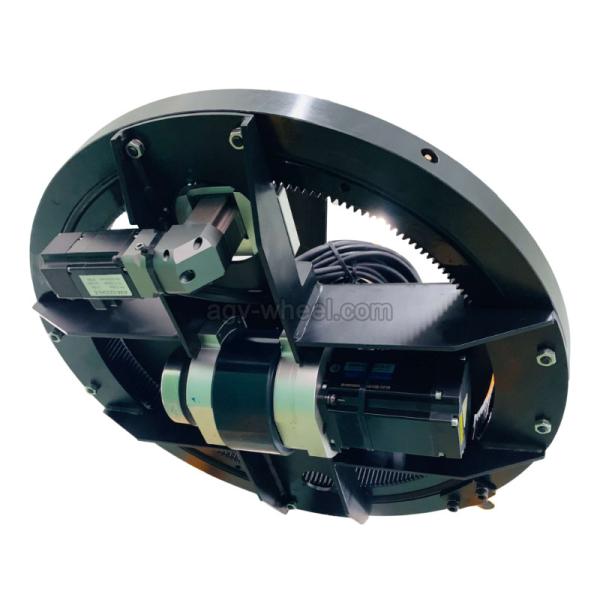

    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer

    Ask Lasest Price
    Brand Name : zhilun
    Supply Ability : 100 Piece/Pieces per Month
    Price : $11,000.00 - $18,000.00/Pieces
    • Product Details
    • Company Profile

    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer

    ZHLUN 170 agv caster wheels motor drive wheel steering wheel for Kinco

    130 Steering wheel parameter list


    Item
    Name
    Unit
    Value
    Remark
    1
    Installlation height
    MM
    130
    2
    Wheel diameter
    MM
    125
    3
    Speed ratio
    /
    1:13/1:29.86
    Select on demand
    4
    Speed
    M/MIN
    90/40
    Select on demand
    5
    Maximum load
    KG
    500
    6
    Traction motor
    W
    100-750
    Select on demand
    7
    Steering motor
    W
    50-200
    Select on demand
    8
    Steering ratio
    /
    1:23/1:24/1:30/1:35/1:40
    Select on demand
    9
    Motor Voltage
    V
    DC24/48
    Select on demand
    10
    Angle sensor
    /
    Optional
    11
    Walking encoder
    /
    Optional
    12
    Steering limit sensor
    /
    NPN/PNP
    Select on demand
    13
    Brake
    V
    24/48
    Select on demand




    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    main feature
    1. Rated bearing capacity 500KG
    2. built-in planetary reducer
    3. low large bearing capacity strong traction
    4. Double support structure, balanced force, stable operation..
    5. Multi-stage planetary reducer, high transmission efficiency, more quiet..
    6. Compact structure, high integration, so that the control more convenient.
    7. The surface of the wheel is made of. composite polyurethane, with great friction and strong grip.

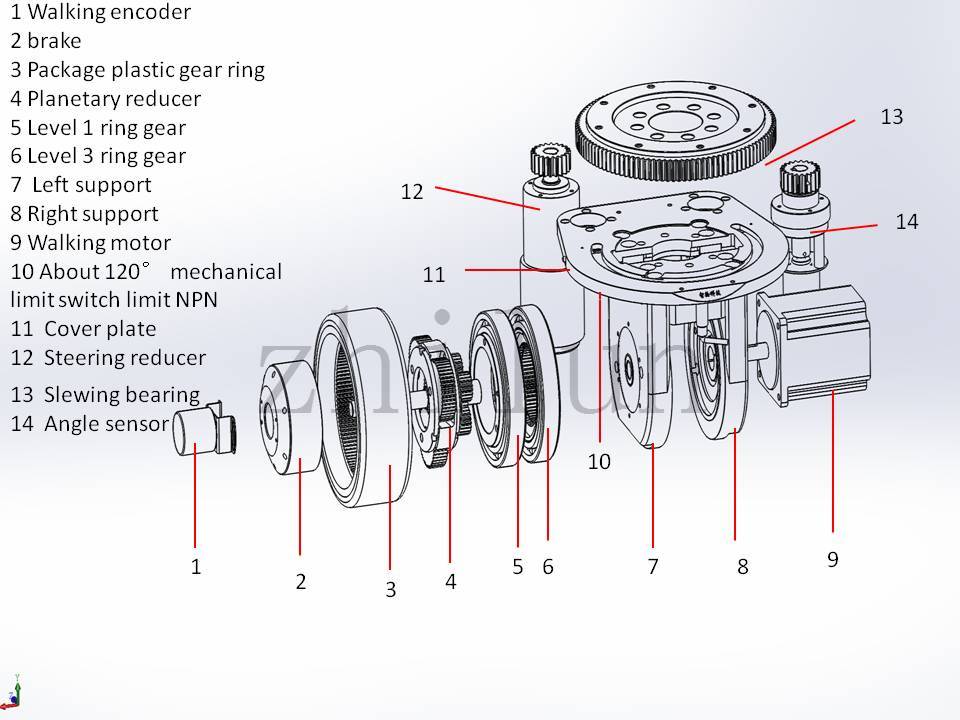

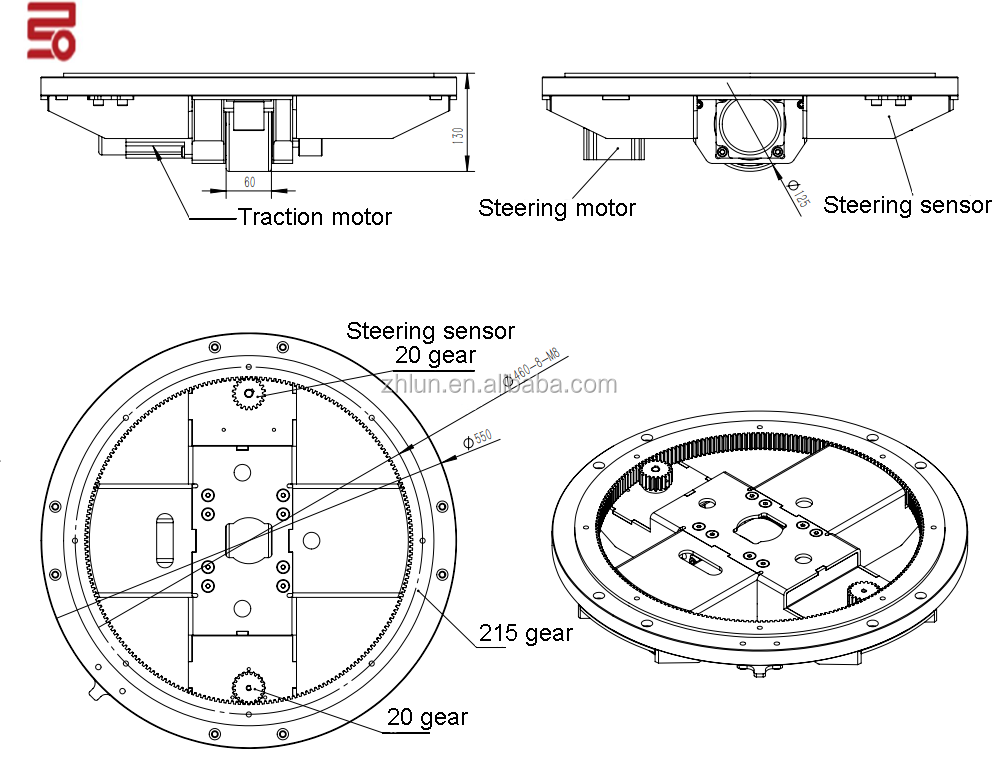

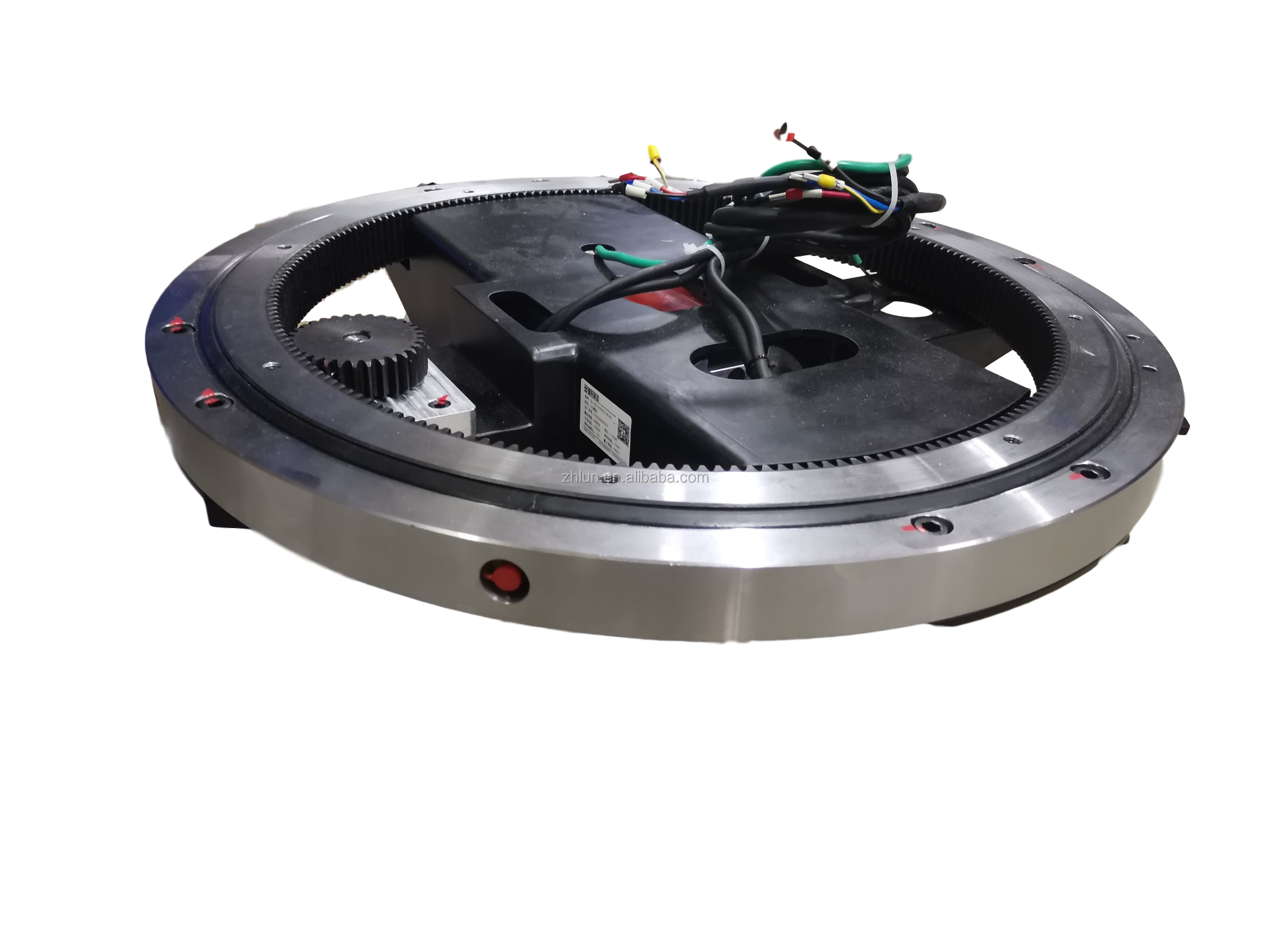

    Detailed Images
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer

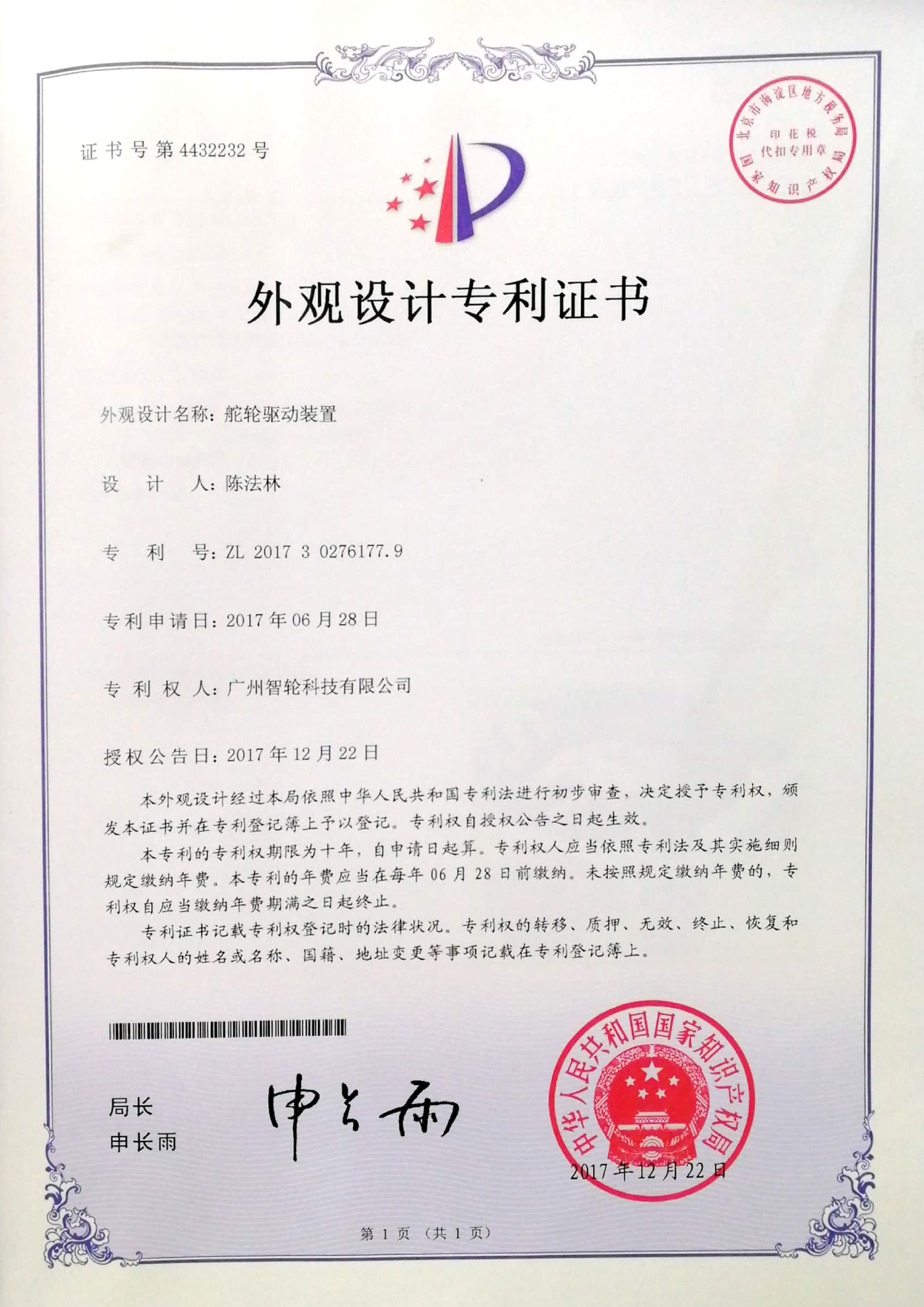

    Certifications
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer
    After Sales Service

    1. Provide body debugging service
    2. Product design and installation services

    3. One year warranty
    Company Introduction
    Guangzhou wheel technology co., LTD. Is a AGV wheel, AGV driving wheels, controller, gear, gear reducer, variable speed
    machine,AGV power, AGV car, charging pile, lift pin, cushion and other products professional production and processing company,with complete and scientific quality management system, and has set up a rich experience of AGV application engineering and technical team. Guangzhou wisdom wheel technology co., LTD, integrity, strength and product quality obtain industry acceptance.Welcome friends from all walks of life come to visit, guidance and business negotiation.
    500kg AGV Drive Wheel For Kinco Built In Planetary Reducer




    Our Services & Strength

    Our company can customize the development according to the project application, and provide the overall solution and the whole process of technical support services before, during and after sales
    FAQ
    Q:Are you a manufacturer or a trader?
    ANS:manufacturer.

    Q:How can we make sure about the machine quality after placing the order?
    ANS:Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until
    you satisfy. We will setting all the parameters well.
