Heavy Duty AGV Spare Parts PU Damping Spring Loaded Caster Wheel

Shock Absorption Industrial Wheels PU Swivel Damping Casters

Applications

Shock absorb caster wheel Heavy duty Shock absorb caster swivel caster wheels Spring loaded caster wheel's Common applications include:various material handling, factory part carts transporting sensitive materials, aircraft maintenance , ground support equipment, tool chests, ideal for diagnostic and electrical equipment, institutional and laboratory equipment, medical equipment and carts, mobile workstations, computer main frames and towers, sound and lighting equipment, etc,
If you don't see what you want, STARDRAWING's engineering team can custom design a caster for any application.

Heavy Duty AGV Spare Parts PU Damping Spring Loaded Caster Wheel ,

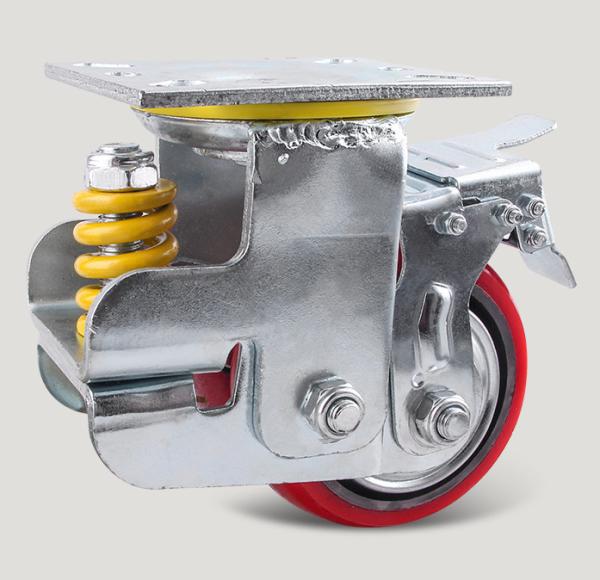

This Shock absorb caster offers load protection from vibration and shocks, reduces rolling noise and impact damage from floor. Yoke construction is made from cold rolled steel, double ball raceway are deeply formed to enhance side thrust resistance, a 1/2 inch diameter kingbolt is used to offer a smooth swivel action and superior durability. Zinc plated finish is attractive & corrosion resistant.

Main Features

1)Heavy duty Shock absorb caster Reduce stress on wheels and rigs due to shock from rough surfaces
2)Dampen and isolate shocks and vibration from rough surfaces to protect cargo or contents in a cart or equipment
3)Shock absorb caster Reduce noise caused by casters traveling over rough surfaces
4)Equalize the load over uneven terrain among four or more casters, thereby reducing overloads on casters and twisting of the cart frame
5) Shock absorb caster Exceptional operating comfort even at higher speeds.

Caster Size	Mounting Type	Wheel Diamter (MM)	Over All Height (MM)	Load Capacity (KG)
5 Inch Shock Absorb Caster Wheel	Plate Swivel	125	190.5	350
	Plate Rigid	125	190.5	350
	Plate Tire Brake	125	190.5	350
6 Inch Shock Absorb Caster Wheel	Plate Swivel	150	203	380
	Plate Rigid	150	203	380
	Plate Tire Brake	150	203	380
8 Inch Shock Absorb Caster Wheel	Plate Swivel	200	245	500
	Plate Rigid	200	245	500
	Plate Tire Brake	200	245	500

Description

Strong steel industrial swivel caster forks featuring double ball bearing heat-treated raceways, bright zinc plating. the handling capacities to 1,200 pounds per caster. Choose from rigid caster and swivel caster combinations for best steering results. Great for dollies, platform trucks, warehouse carts and freight terminals.heavy duty High Temperature Casters is well-suited for food service carts, hotel housekeeping carts, plus industrial and commercial equipment.

Heavy Duty AGV Spare Parts PU Damping Spring Loaded Caster Wheel
