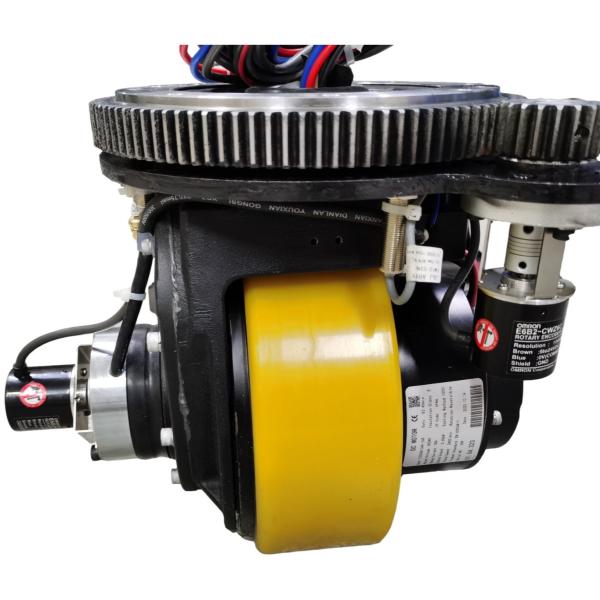

Automatic AC Motor Drive Wheel AGV Integrated Wheels 3000r/min For Transport

Guangzhou Wisdom Wheel Science Technology Ltd.
Contact Now
    Buy cheap Automatic AC Motor Drive Wheel AGV Integrated Wheels 3000r/min For Transport from wholesalers

    Buy cheap Automatic AC Motor Drive Wheel AGV Integrated Wheels 3000r/min For Transport from wholesalers
    • Buy cheap Automatic AC Motor Drive Wheel AGV Integrated Wheels 3000r/min For Transport from wholesalers

    Automatic AC Motor Drive Wheel AGV Integrated Wheels 3000r/min For Transport

    Ask Lasest Price
    Brand Name : ZHLUN
    Supply Ability : 1000 Pieces per Month
    Price : Negotiable
    Model Number : ZL-210
    Payment Terms : L/C, T/T
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Automatic AC Motor Drive Wheel AGV Integrated Wheels 3000r/min For Transport


    Automatic Electrical AC Motor Drive Wheel Integrated Wheel For Transport


    Specification

    Item
    Motor Data
    Model
    ZL-210
    Motor Type
    AC Brush
    Traction Data
    Rated Power(W)
    750 W Optional
    Rated Voltage(V)
    48 V
    Rated Speed(rpm)
    3000 r/min
    Rated Current(A)
    19.5 A
    Rated Torque(N.m)
    2.39 Nm
    Brake Torque(N.m)
    8 Nm
    Gear Ratio(i)
    34.14i
    Wheel Diameter(mm)
    250 mm
    Encoder
    Optional
    Steering Data
    Power S2-60 min
    400W Optional
    Rated Voltage
    48 V
    Rated Current
    11 A
    Rate Speed
    3000 r/min
    Rate Torque
    1.24Nm
    Total Reduction Ratio
    320i
    Encoder
    Optional



    Description

    The steering wheel system integrates the driving and steering functions of the AGV robot, including the driver, drive motor, gear box, steering motor, deceleration device, wheel, brake device, limit switch and auxiliary parts.
    The steering wheel system is the drive control part of the AGV robot. After receiving the drive signal from the superior control system, it can drive the wheels to the destination at a certain speed. After receiving the steering signal, it can control the direction of the wheels. In this process, it is necessary to ensure that the speed control of the wheels and the position control of the wheels are coordinated and coordinated, so as to realize the smooth, accurate and flexible driving and steering of the AGV robot.


    Product features

    1 ) Integrated design Through the joint design of the steering wheel body and the driver, the product has better system matching, higher cost performance, and simple commissioning, which is convenient and easy to use.
    2 ) Excellent performance
    a ) Stable control: adopt vector control and filtering technology to achieve stable control and ensure 2-3 times the peak torque and the best efficiency;

    b ) Wide range of speed regulation: realize low and high speed stable control, the minimum speed is within 0.1m
