Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation

Guangzhou Wisdom Wheel Science Technology Ltd.
Contact Now
    Buy cheap Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation from wholesalers

    Buy cheap Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation from wholesalers
    • Buy cheap Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation from wholesalers

    Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation

    Ask Lasest Price
    Brand Name : ZHLUN
    Model Number : ZL-D26
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 Piece/Pieces per Month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation

    Small Laser Agv Robot Damping Chassis For Logistics Transportation


    Drive Wheel anti-overhead device realizes the common grounding problem of multiple wheels and guarantees the driving force of the AGV, and the auxiliary wheel and the driven wheel also share most of the bearing capacity to ensure the stable operation of the manipulator.

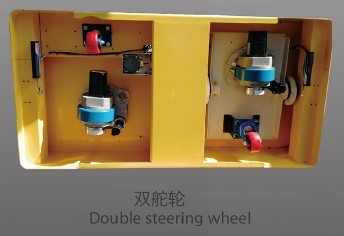

    The chassis is equipped with ZL-B27 drive wheels, which can realize zero turning radius, side shift, all-round drift without dead angle. It satisfies the function of moving in any direction, including straight, horizontal, oblique, arbitrary curve movement, and 360-degree omnidirectional movement on the spot. Small size and easy to move



    The balance device keeps the driving wheel in close contact with the ground. When encountering a protruding road, due to the floating nature of the driving unit, the driving wheel can be prevented from hanging or slipping, so that the AGV will not lose power or be lifted, and overcome the instability caused by uneven ground.


    Our company also designs and produces a variety of agv types of parts, We can quickly customize and develop various types of AGV products according to specific application needs If you are interested.


    Specification


    Item
    Specifications
    Dimensions
    L880*W560*H212mm(optional)
    Guide and control
    Magnetic navigation and RFID tags
    Moving speed
    MAX 1m/s
    Carrying capacity
    200kg
    Battery
    DC24V, 30Ah, Ternary lithium battery
    Charging method
    offline charging/automatic charging
    Obstacle avoidance
    Ultrasonic sensor and Bump sensor
    Positioning accuracy
    ±5mm
    Control function
    Map editing/scripting/task chain editing/various API.etc
    Communication
    CAN/RS232/RS485/IO/WIFI

    Small Laser Robot Damping AGV Chassis aGV frame For Logistics TransportationSmall Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation

    Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation,

    Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation


    WHY CHOOSE US

    • Rich industry application experience and reasonable overall layout of AGV plan.
    • Have strong design and integration capabilities to help projects be easier to implement.
    • Customized services: we can provide customized development according to project applications, and provide fast and corresponding overall solutions and technical support services before, during and after sales, fully considering customer needs.


    Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation


    Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation

    Small Laser Robot Damping AGV Chassis aGV frame For Logistics Transportation


    Guangzhou Wisdom Wheel Science Technology Ltd. founded 2018, we designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, gear reducer, controller, caster wheel, PU wheel, motor in wheel units and all over the world.

    ZHLUN continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.


    The company has its own factory, is 1000 sq. feet, and employs 40 people. The company is certified to ISO9001:2015.

    The core to ZHLUN's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. ZHLUN has come to be recognized as one of the biggest suppliers of electric drive.

    Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.


    Today, ZHLUN can quickly design and produce engines and special parts request from customers.


    ZHLUN's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.

    All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
