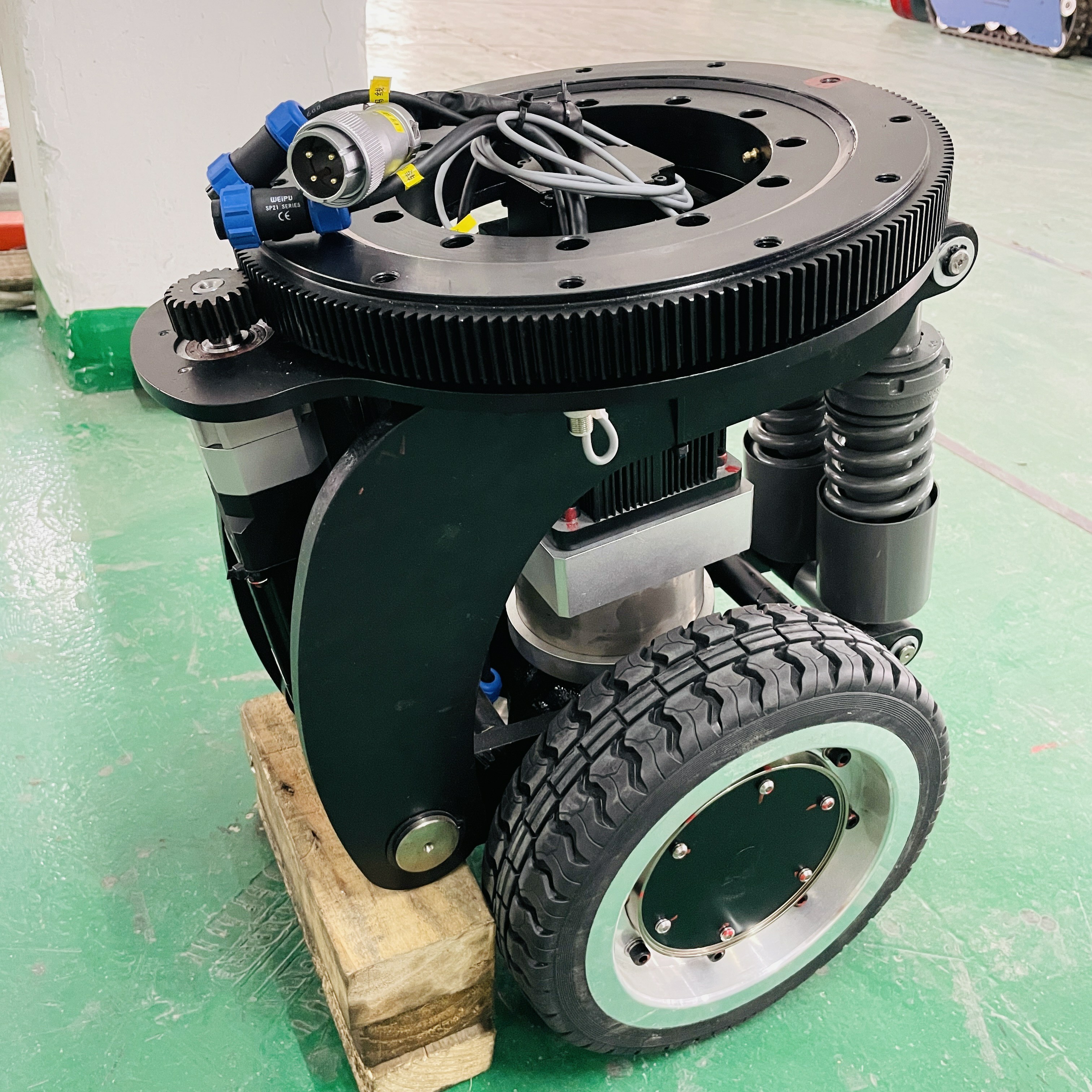

AC Servo Two-Wheel Drive Motor Wheel Automatic Guided Trolley With Motor Driver

Specification

Description

The ZL wheel drive consists of a wheel, integrated planetary gearbox and bearing in one short unit. Combining wheel drives with our motors and controllers results in compact systems that simplify the development and production of self-propelled systems, such as service robots or AGVs.

Space-saving design
Withstands high radial loads
Different wheel diameters available
Can be combined with a wide range of motors as well as brakes and encoders
The wheel drives can be ordered with and without a mounting bracket. For series production Nanotec also offers press-on tires made from special composite materials.

The ZL wheel drives are available in combination with motors in different sizes

Function

1. Maximum power density
High radial loads and constantly high acceleration and speed

2. Long service life
Drive system designed for efficiency with a long-lasting PUR wheel

3. Low level of maintenance
Components can be replaced individually thanks to the modular design

4. Intelligent drive system
Plug & Play function and a central parameter check using an optional sensor system

5. High level of integration
All functional elements housed in a compact space with minimal weight

6. Comprehensive communication
Comprehensive drive control system as an e-axle thanks to standard interfaces (e.g. RS485 / Canopen,etc.)

ZHLUN provides complete and professional solutions for AGVs, forklifts and other related robots in auto industry. The company’s main products include low-voltage electric drive wheel,horizontal motor in wheel, vertical motor in wheel, with steering motor or without,low oltage servo drives, industrial motor controllers and other products.Application includes mobile robots, heavy-duty AGVs, unmanned forklifts, inspection robots, medical equipment, collaborative robots, servo presses etc.

Guangzhou Wisdom Wheel Science Technology Ltd. relies on technological innovation for development, and continues to provide users with satisfactory high-tech products. According to application needs, it has successfully developed a series of AGV steering wheels with different installation heights such as 400, 260, 230, 200, 170, 160, and 130. drive assembly, the load capacity of a single steering wheel ranges from 500kg to 10 tons, the traction force ranges from 200Kg to 10 tons, and the multi-steering wheel combination has a heaviest traction force of 100 tons.

The KIVA power system has also been affirmed by a large number of users; At the same time, the company is also unique in the field of heavy-duty handling, heavy-duty unmanned handling flatbed trucks, omnidirectional forklifts, and special assembly AGVs in special industries. AGV products have been widely used in many fields such as automobiles, metallurgy, chemicals, electronics, pharmaceuticals, tobacco, and military industries.

In the process of development, the company continuously communicates and cooperates with many domestic scientific research institutions, designs and produces, It already has a pivotal position in the automated logistics industry, leading the development of AGV-driven.

Our aim is to create value for customers with first-class product quality and superb technical service!
