ZHLUN New Product Planetary Reducer Drive Wheel Without Motor For
AGV Part
ZHLUN in order to meet the needs of the smart logistics market in
the future, ZHLUN seizes market opportunities, gathers the
advantages of senior experts and scholars in mechanical, electronic
and servo motors in the field of mechanical and electrical
integration in the industry, and forms a strong R&D, design,
manufacturing and sales team. , Focus on the development of AGV
drive wheel module.

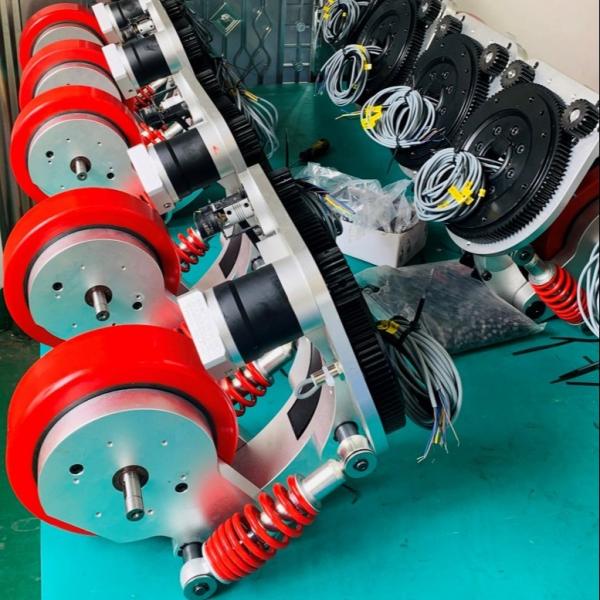

The drive wheel module is an AGV drive wheel module designed by our
company. It has been deeply designed on the basis of the original
steering wheel group. The reducer and the driving wheel are
designed as a whole, and an external DC motor is added to become a
highly integrated mechatronics AGV walking driving wheel assembly
component. Its structure is simple, its performance is reliable,
and it is easy to install and maintain. In an AGV of the same size,
the space occupied by the walking driving wheels is reduced, the
battery capacity is increased, and the endurance of the AGV is also
increased correspondingly. This is the small size of our driving
wheels.
At present, the AGV drive wheel set developed and designed by ZHLUN
has one-way and omni-directional products. It is integrated with
ZHLUN reducer products that have the advantages of compactness,
high rigidity, and impact resistance, which realizes the compact
effect of the integrated cycloid reducer in the drive wheel, and
has a very wide and flexible selection of transmission ratios.
Provide customers with reliable solutions in terms of light weight,
high load capacity, high torque, etc.
Advantage
- The steering wheel series can carry 100KG-10000KG by single
wheel.
- Choose high-power drive motors and types according to customer
requirements.
- A variety of speed ratios can be selected, allowing small power
to make large loads.
- Low installation height, as low as 130mm
Features
Small size: adopts integrated design, small size and light weight;
Simple operation: integrated automatic centering function;
Strong adaptability: In response to the mobile requirements of the
machine, the core components are equipped with a shockproof system,
which effectively prevents damage to the core components of the
machine due to accidental impacts during the transportation and use
of the equipment;
Various installation forms: horizontal and vertical
Multiple choices: AC or DC power supply;
Drive and steering integrated drive wheel products
Specification
Item | Motor Data |
Model | ZL-B26 |
Motor Type | DC / AC |
Traction Data |
Rated Power(W) | 400-2000 W Optional |
Rated Voltage(V) | DC24-48V / AC220V |
Rated Speed(rpm) | 3000 r/min |
Rated Torque(N.m) | 1.28-6.37 Nm |
Brake Torque(N.m) | 8 Nm |
Gear Ratio(i) | 34.14i |
Wheel Diameter(mm) | 180 / 200 mm Optional |
Encoder | Optional |
Steering Data |
Power S2-60 min | 200-400 W Optional |
Rated Voltage | DC24-48V / AC220V |
Rate Speed | 3000 r/min |
Rate Torque | 0.64-1.28Nm |
Total Reduction Ratio | 320i |
Encoder | Optional |
Guangzhou Wisdom Wheel Science Technology Ltd. founded 2018, we
designs, manufactures and sells agv, driving wheel assembly, DC/AC
motors, encoder, gear reducer, controller, caster wheel, PU wheel,
motor in wheel units and all over the world.
ZHLUN continues to bring excellent products, technological
innovation and ease of customizing to the automated equipment.
The company has its own factory, is 1000 sq. feet, and employs 40
people.
The core to ZHLUN's growth is the constant dedication to the
pursuit of full customer satisfaction. They have a strong presence
in domestic and international markets, as well as, great production
flexibility. ZHLUN has come to be recognized as one of the biggest
suppliers of electric drive.
Continued investment in the most modern machinery has further
increased and developed the quality and flexibility of each
product.
Today, ZHLUN can quickly design and produce engines and special
parts request from customers.
ZHLUN's product are used in a myriad of application, including but
not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines,
Agricultural Machines, Hydraulic Applications, Floor Scrubbers,
Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify
the quality and the duration will work perfectly before sending
production parts to customers. Due diligence is paramount to the
satisfaction of our customers.
