PCEC Explosion Proof Certified High Power Damping Steering Wheel With 8 Nm Brake


AGV has been widely used in different fields with its advantages of high degree of automation, sensitivity and safety. However, with the continuous changes in the application environment of agv, customers' requirements for agv are constantly changing, especially in some special application places, such as product processing and manufacturing, which may produce flammable and explosive gases, steam and dust.

These flammable gases or dusts are mixed with air and can easily form explosive mixtures. When the agv body is transported and driven in this dangerous working environment, it must have high explosion-proof performance. As one of the important core components of the agv body, the steering wheel device should also be designed to meet the explosion-proof requirements.

Our company provides an explosion-proof steering wheel system, which can realize the long-term safe, reliable and high-efficiency work of agv transport vehicles in the environment of explosive gas and dust hazardous conditions. Explosion-proof treatment caused major safety accidents.

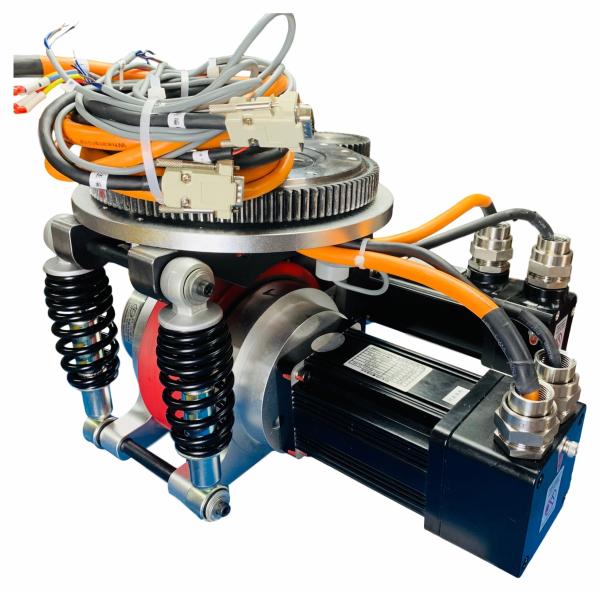

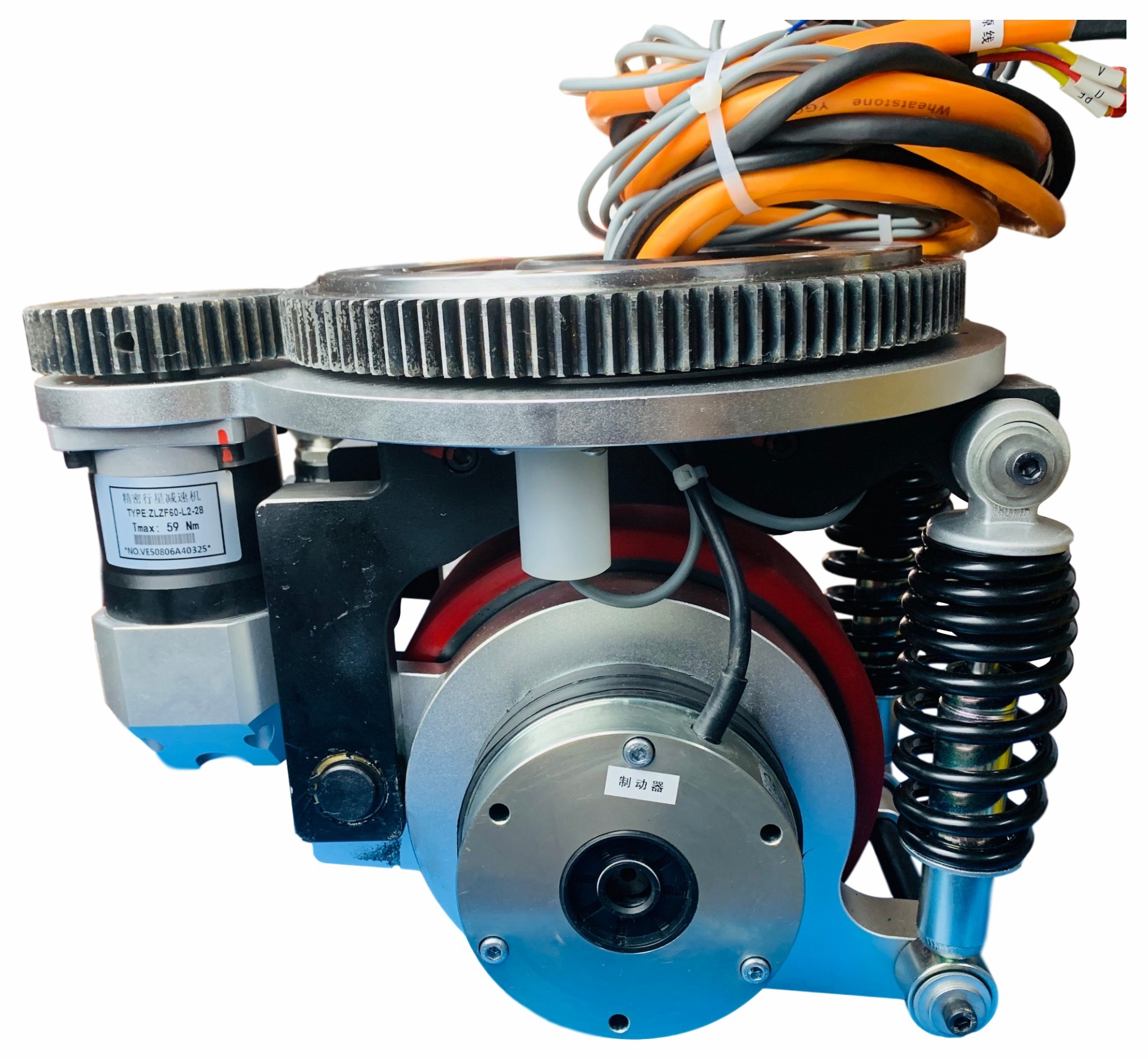

The steering drive assembly includes an explosion-proof motor for steering drive, a steering reducer, an adapter plate for the steering reducer, and a steering pinion. The explosion-proof motor for steering drive is connected with the steering reducer to drive the steering reducer to rotate, and the steering reducer is connected to the steering gear. The reducer is connected with an adapter plate, the steering reducer is connected with the mounting plate with an adapter plate, the steering reducer drives the steering pinion to rotate, and the steering pinion meshes with the outer ring gear of the slewing bearing to realize the steering movement of the steering wheel device.

The driving component includes an explosion-proof motor for driving, a speed reducer for driving, and a conductive polyurethane wheel; the explosion-proof motor for driving is connected to the speed reducer for driving through a flat key and a keyway to drive the speed reducer to rotate, and the conductive polyurethane wheel is connected to the speed reducer for driving. The reducer is connected to realize the driving motion of the steering wheel device.

Guangzhou Wisdom Wheel Science Technology Ltd. relies on technological innovation for development, and continues to provide users with satisfactory high-tech products. According to application needs, it has successfully developed a series of AGV steering wheels with different installation heights such as 400, 260, 230, 200, 170, 160, and 130. drive assembly, the load capacity of a single steering wheel ranges from 500kg to 10 tons, the traction force ranges from 200Kg to 10 tons, and the multi-steering wheel combination has a heaviest traction force of 100 tons.

The KIVA power system has also been affirmed by a large number of users; At the same time, the company is also unique in the field of heavy-duty handling, heavy-duty unmanned handling flatbed trucks, omnidirectional forklifts, and special assembly AGVs in special industries. AGV products have been widely used in many fields such as automobiles, metallurgy, chemicals, electronics, pharmaceuticals, tobacco, and military industries.

In the process of development, the company continuously communicates and cooperates with many domestic scientific research institutions, designs and produces, It already has a pivotal position in the automated logistics industry, leading the development of AGV-driven.

Our aim is to create value for customers with first-class product quality and superb technical service!
