    Electric Hydraulic Lurking AGV Lifting Mechanism Device 100w Agv Mounting

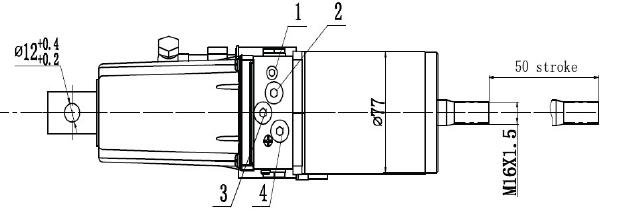

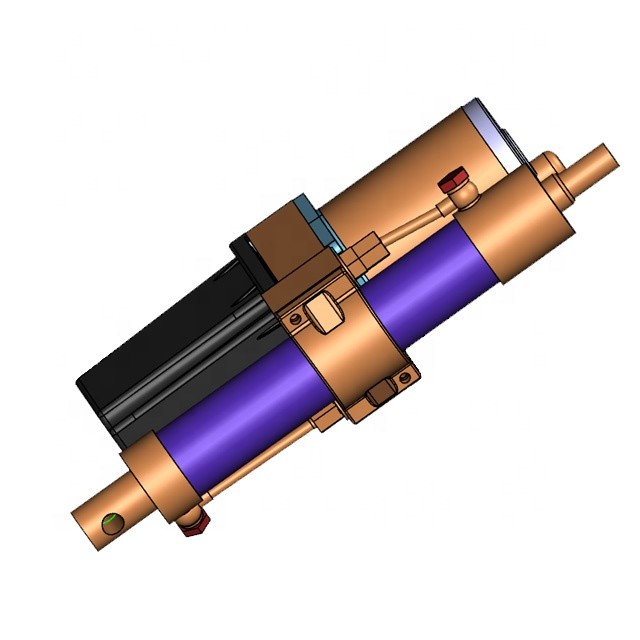

    Electric hydraulic lifting assembly for lift AGV
    The device is mainly used in traction guided vehicles, submersible vehicles such as automatic traction equipment; through the middle of the lever to play a role in lifting. Product structure is compact, the internal turntable design allows the loading motor only need to follow one direction to move the middle rod up and down repeatedly; up and down two limit switches to ensure that the lifting rod can move to the exact position.
    Item
    Data
    Model
    ZL-LA1
    Moto Type
    D.C.
    Power S2-60 min
    100W
    Rate Voltage
    24V
    Rate Speed
    3000 r/min
    Rate Torque
    1.7 Nm
    Output Speed
    30 r/min
    Electric Hydraulic Lurking AGV Lifting Mechanism Device 100w Agv Mounting
    Electric Hydraulic Lurking AGV Lifting Mechanism Device 100w Agv Mounting
    Electric Hydraulic Lurking AGV Lifting Mechanism Device 100w Agv Mounting
    Electric Hydraulic Lurking AGV Lifting Mechanism Device 100w Agv Mounting

    Guangzhou Wisdom Wheel Science Technology Ltd. founded 2018, we designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, gear reducer, controller, caster wheel, PU wheel, motor in wheel units and all over the world.


    ZHLUN continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.

    The company has its own factory, is 1000 sq. feet, and employs 40 people. The company is certified to ISO9001:2015.


    The core to ZHLUN's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. ZHLUN has come to be recognized as one of the biggest suppliers of electric drive.

    Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.


    Today, ZHLUN can quickly design and produce engines and special parts request from customers.


    ZHLUN's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.

    All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
